4线电阻触摸屏; 亮度300cd/m2技术参数
| Model | STWA151WT-01 |
|---|---|
| Size | 15.1 inch |
| CPU | Cortex A8 |
| Resolution | 1024×768 |
| Pixel Spacing | 0.1905mm×0.0635mm (H×V) |
| Color | 262,144 colors (18 bit) |
| Viewing Area | 304.1mm×228.1mm |
| Display Dimension | 307.4mm×231.3mm |
| Overall Dimension | 348.5mm×255.9mm×26.4mm (T) (Standard type) 257.8mm×148.1mm×28.7mm (T) (with Ethernet port) |
| Backlight Type | LED |
| Brightness | 300cd/m2 (Brightness can be adjustable in 100 levels) |
| Contrast | 800:1 |
| Backlight life | 30,000 hours |
| Viewing Angle | 80°/80°/80°/80°(L/R/U/D) |
| TFT Panel | A Class Industry Panel |
| Touch Screen | 4 Wire Resistance Touch/ Without Touch Screen |
| Screen Mode | Digital |
| Refresh Rate | 1GHz |
| Max Frame rate | 60 FPS |
| Flash Memory | Standard 256MB |
| Rated Voltage | +12V DC or +5V DC |
| Temperature | Operation -30℃～ +80℃ Storage -40℃～ +85℃ |

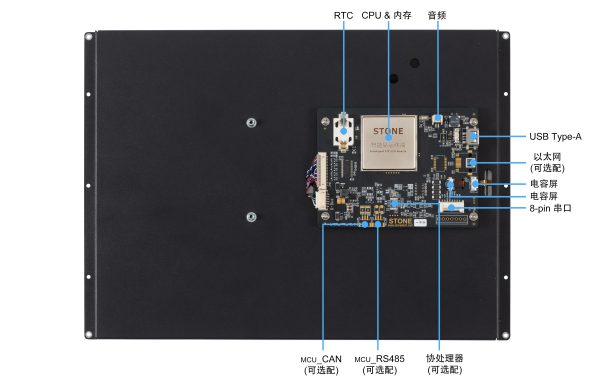

接口图
( Interface : RS232 ｜RS422｜RS485｜TTL｜CAN｜LAN｜WIFI | USB )
