STM32F103

Product Overview

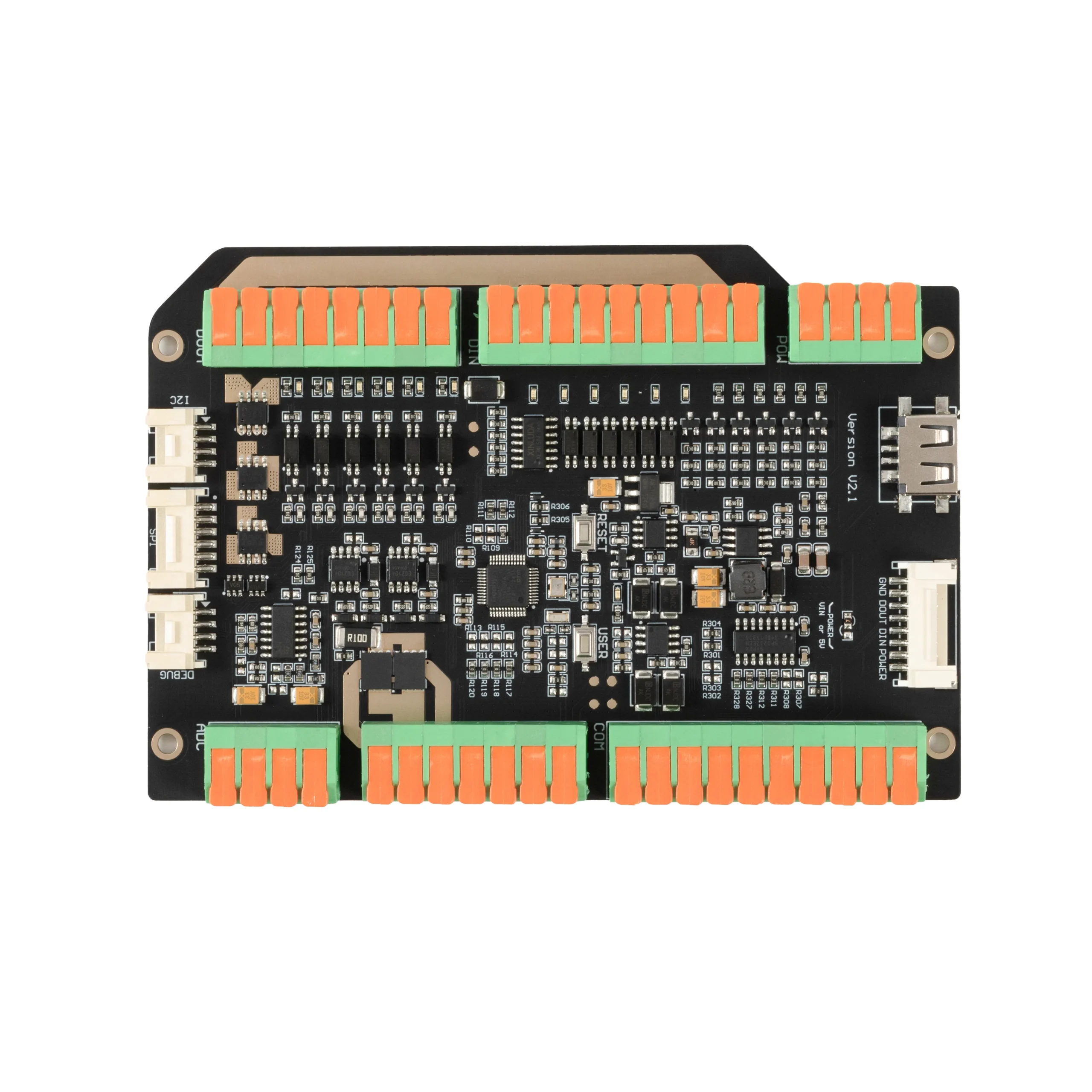

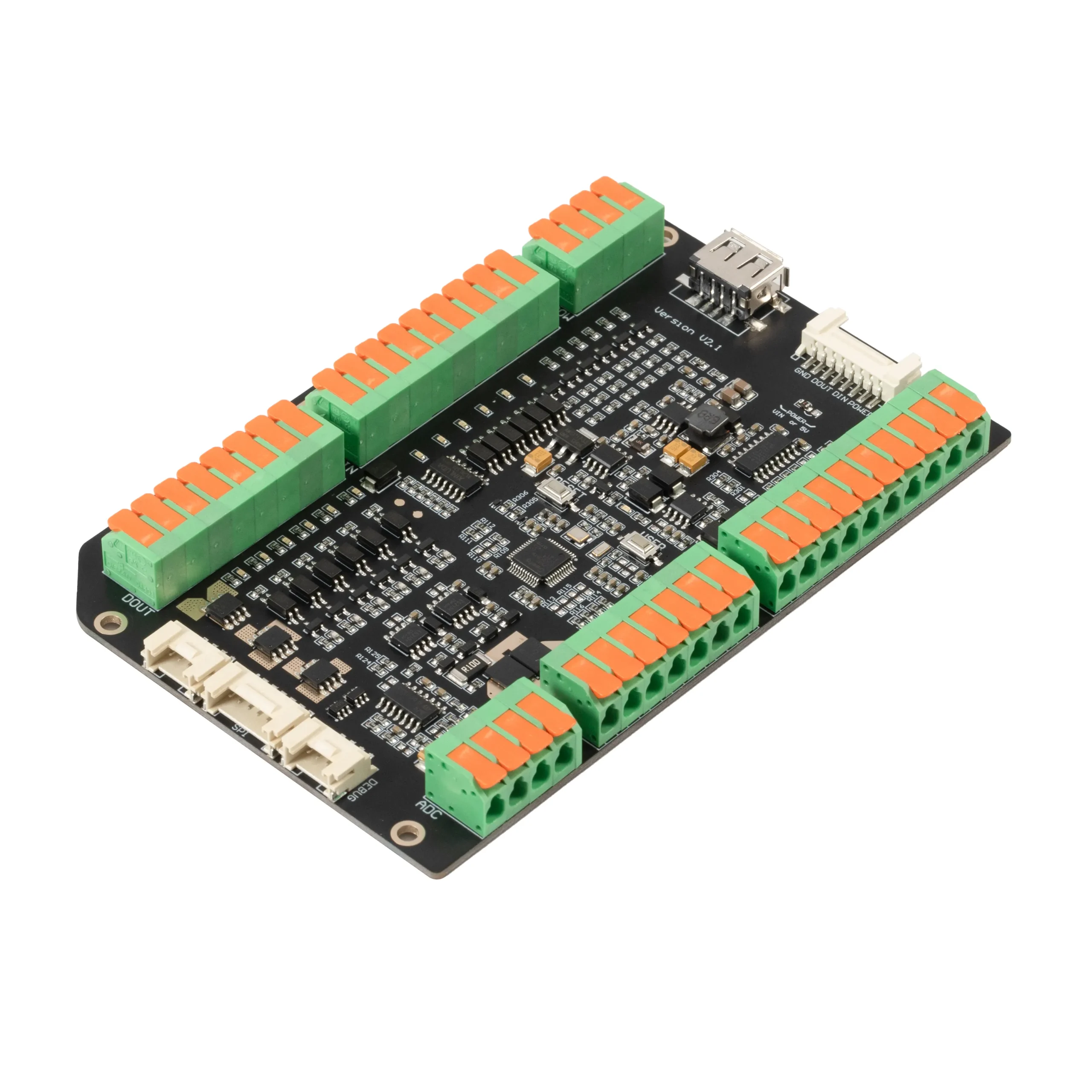

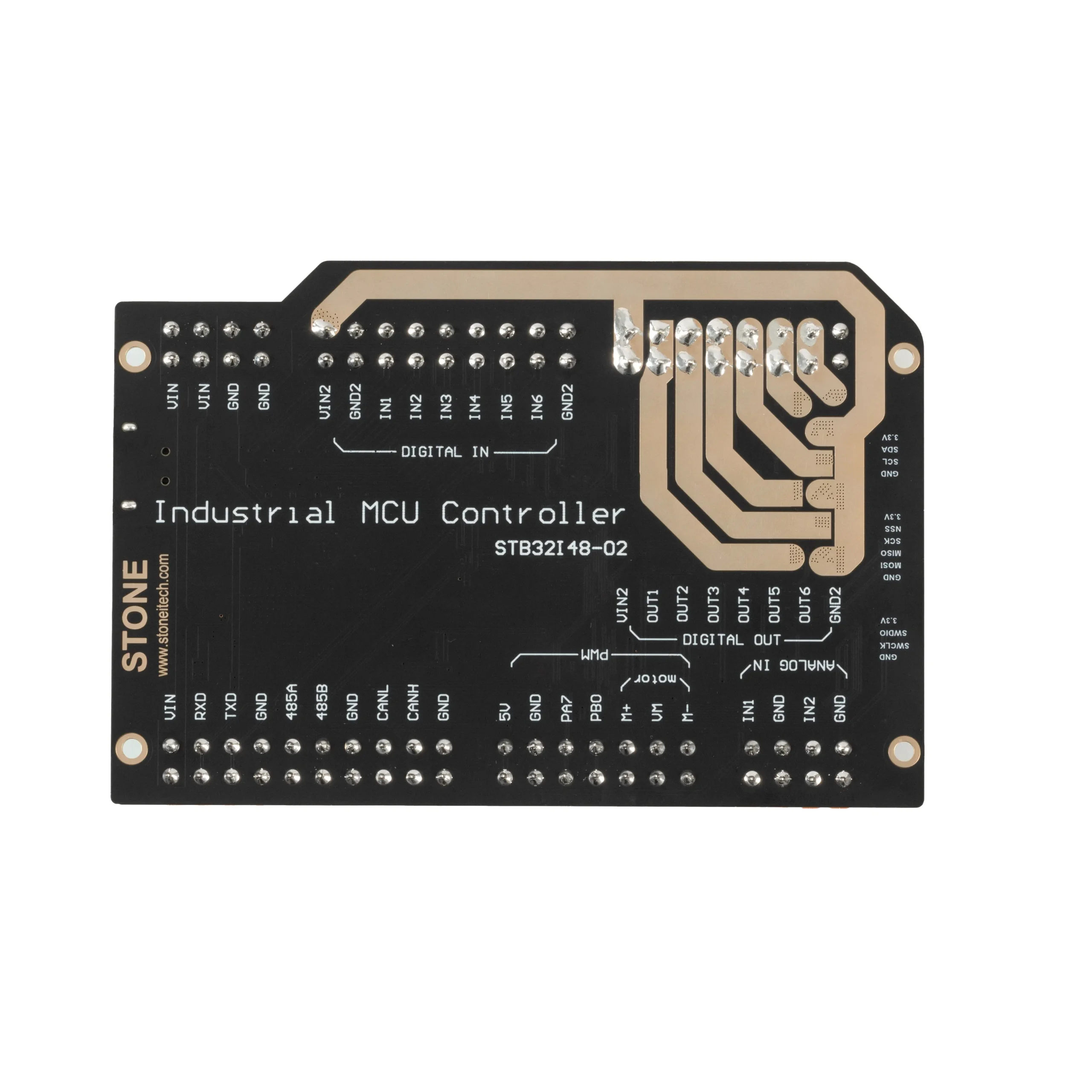

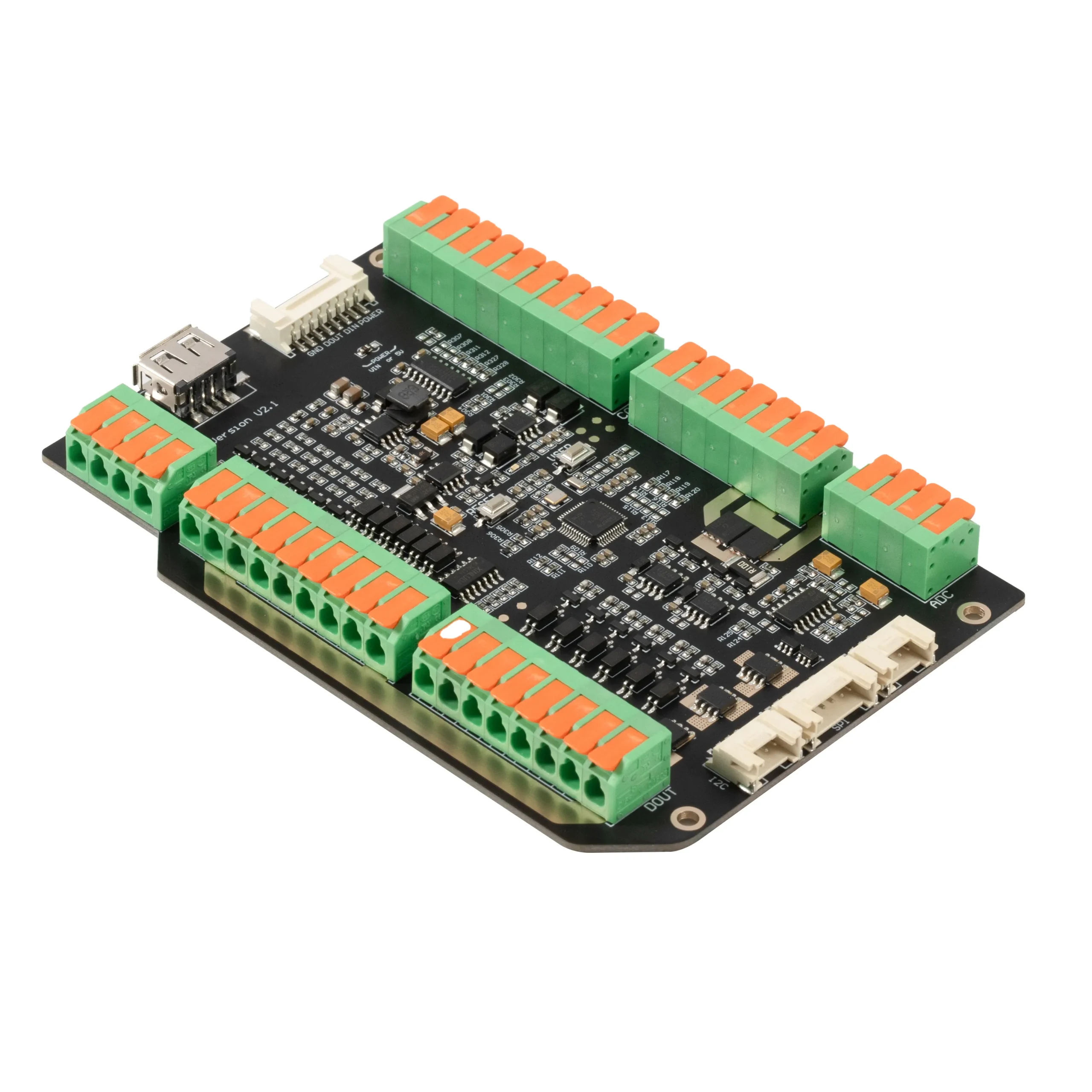

Industrial-grade multi-interface MCU control board, powered by STM32F103CBT6 chip, specifically engineered for industrial automation, data acquisition, and communication gateway applications.

Key Applications

– Industrial Protocol Conversion
– Sensor Data Acquisition & Processing
– Industrial Motor Control
– Automation Equipment Controller

Core Technical Advantages

High-Performance Platform

– STM32F103CBT6 ARM Cortex-M3 Core
– 72MHz Clock Speed for Rapid Response
– 128KB Flash + 20KB SRAM for Complex Applications

Comprehensive Interface Support

Communication Interfaces

– Triple UART Ports
* UART1: 232/TTL Support for Display Connection
* UART2: 232/TTL for Peripheral Communication
* UART3: 485 Level for Industrial Bus Communication
– CAN Bus: Industrial Fieldbus Communication
– USB 2.0: Program Updates & Debugging
– I2C/SPI: Sensor & Peripheral Expansion

Control Interfaces

– 6 Digital I/O Groups (2 Groups SPI Multiplexing)
– 4 PWM Outputs with Complementary Mode
– 2 ADC Channels (0-30V, 500mA)

Comprehensive Protection

– MOS & Optocoupler Isolation Design
– Power Input: 0-30V 2A with Overvoltage Protection
– Signal Synchronization Indicators for Quick Fault Location
– Industrial Temperature Range: -40°C to +85°C



Development Support



Easy Development

– Standard 4-Pin Debug Interface
– Compatible with Mainstream Development Environments
– Complete SDK & Example Code
– Comprehensive Technical Documentation

Product Specifications

Hardware Specifications

– Dimensions: [133.858mm] x [90.043mm] x [1.6mm] mm
– Mounting: DIN Rail or Screw Mount
– Power Requirements: DC 0-30V

Ordering Information

– Model Number: [STM32F103]
– Standard Accessories: USB Cable, Terminal Blocks, Quick Start Guide
– Warranty: 2 Years
– Optional Accessories: Debugger, Connection Cables

Certifications

– CE Certified
– RoHS Compliant
– FCC Approved
– ISO 9001:2015 Manufacturing

Value Propositions

– Industrial-grade Reliability
– Multi-protocol Support
– Comprehensive Protection
– Easy Integration
– Professional Technical Support
