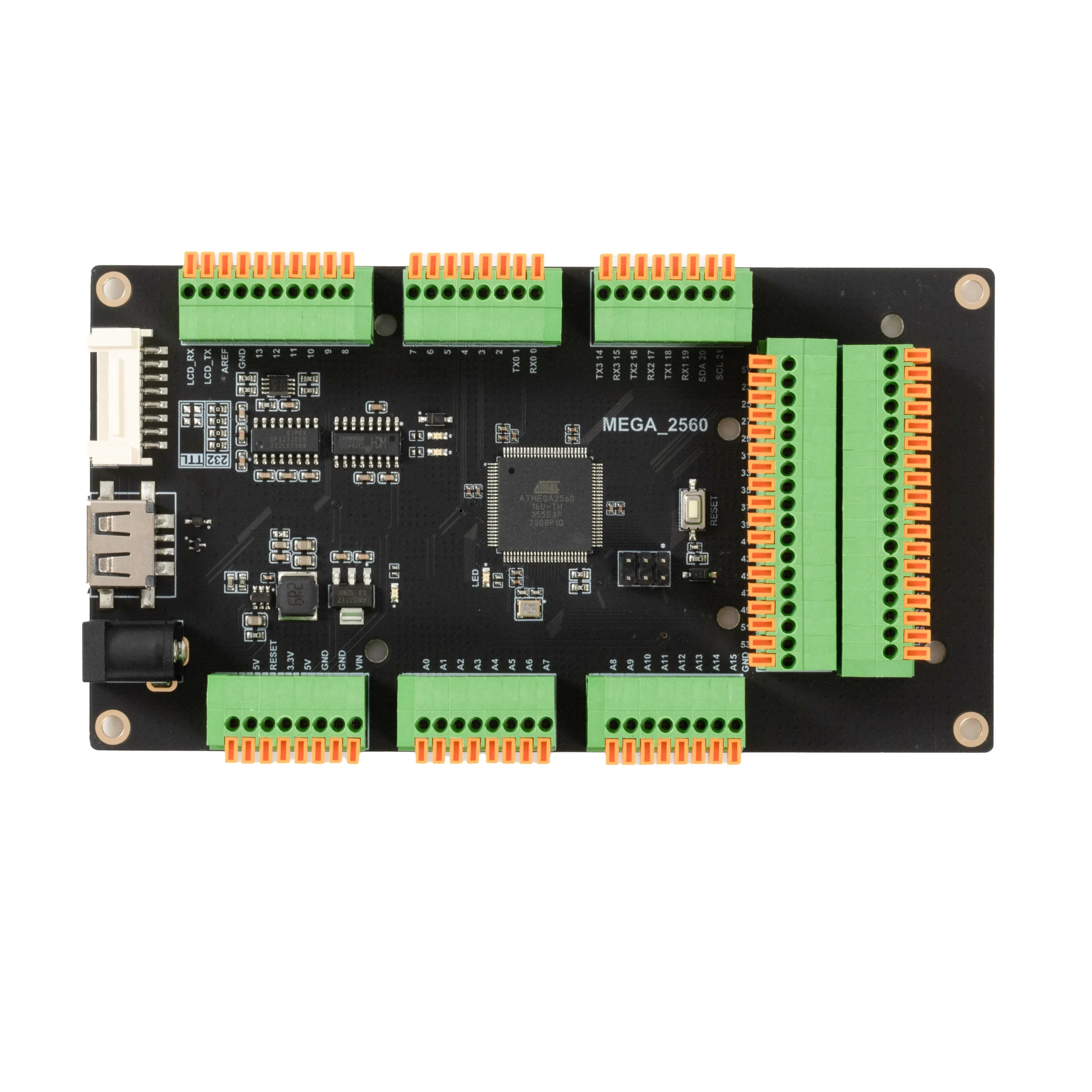

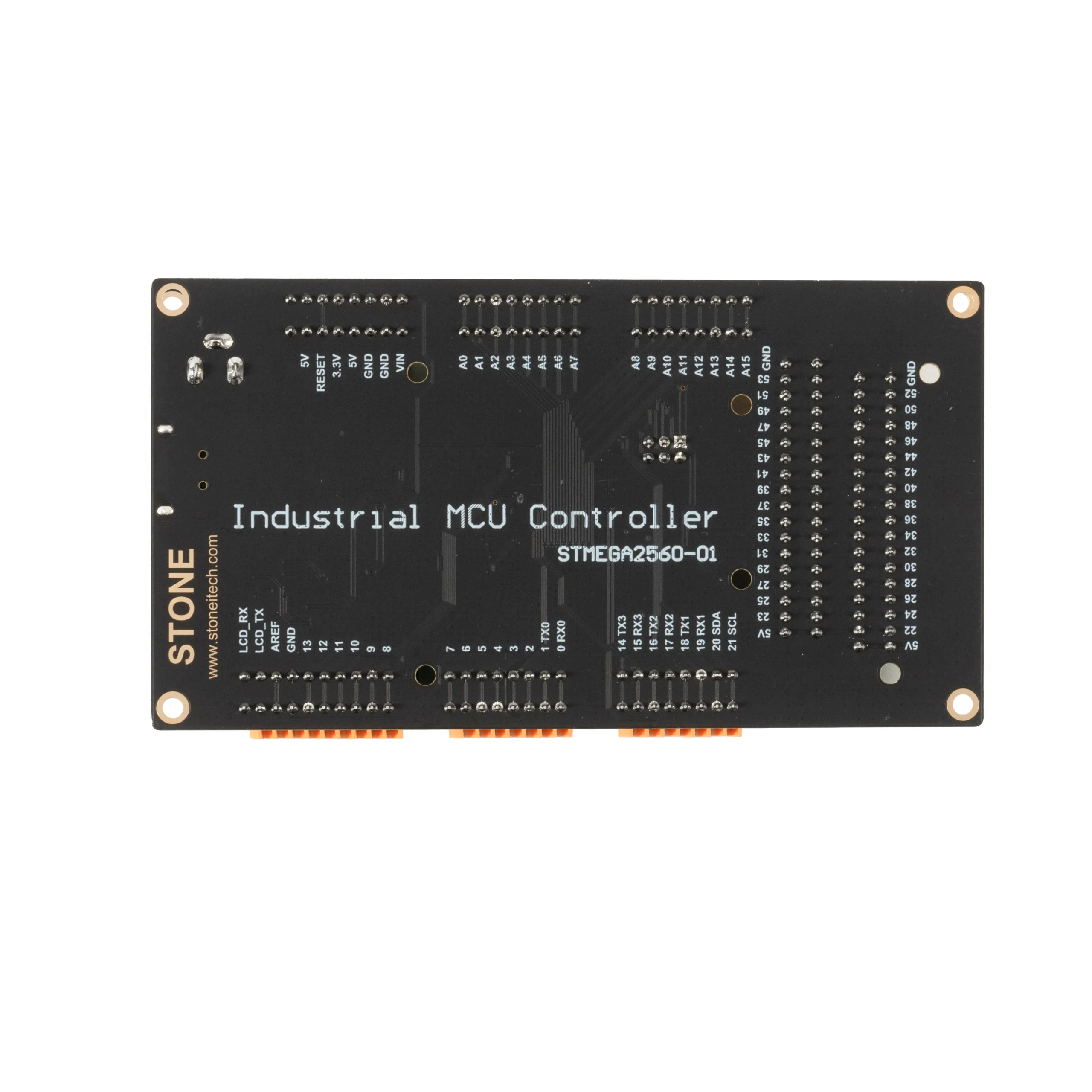

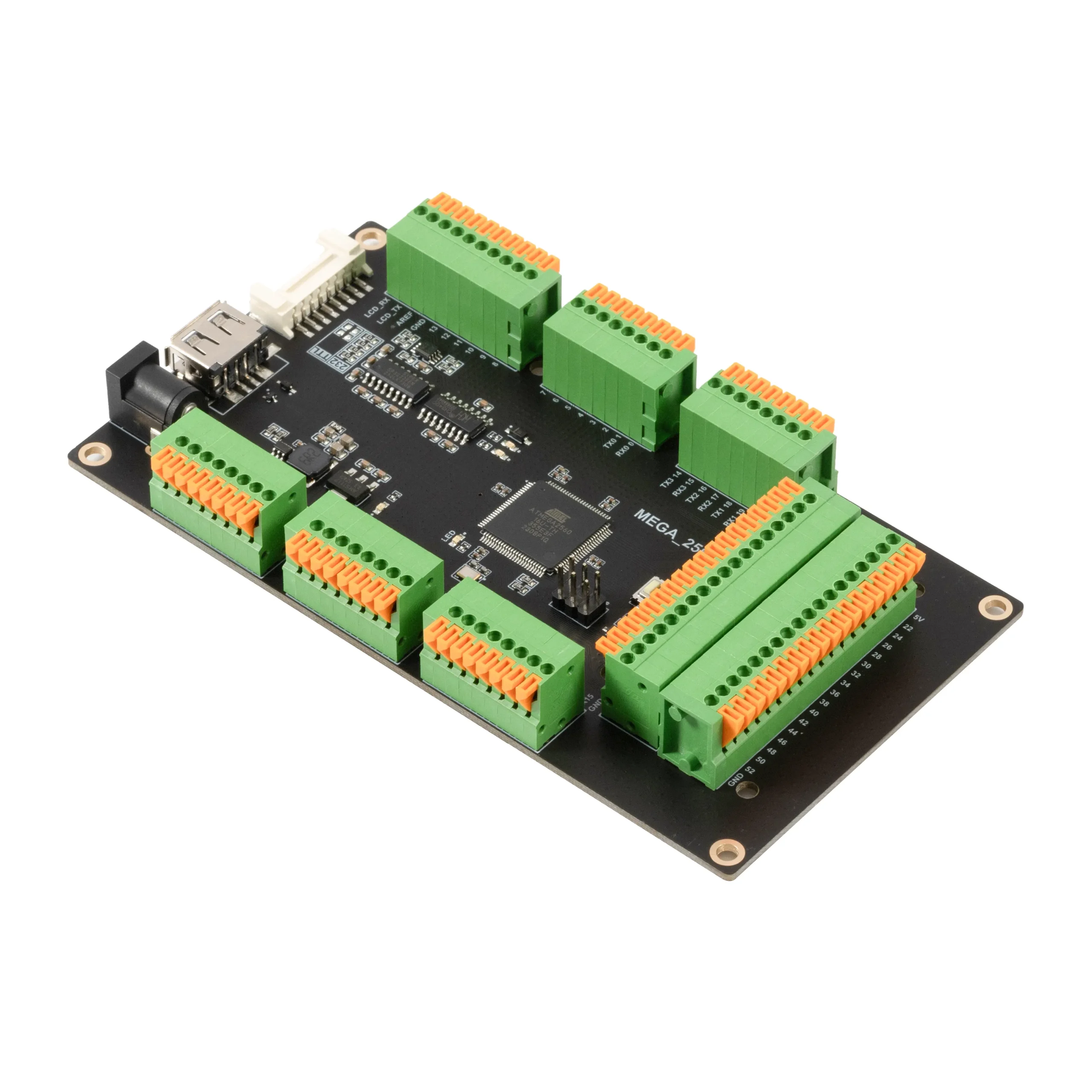

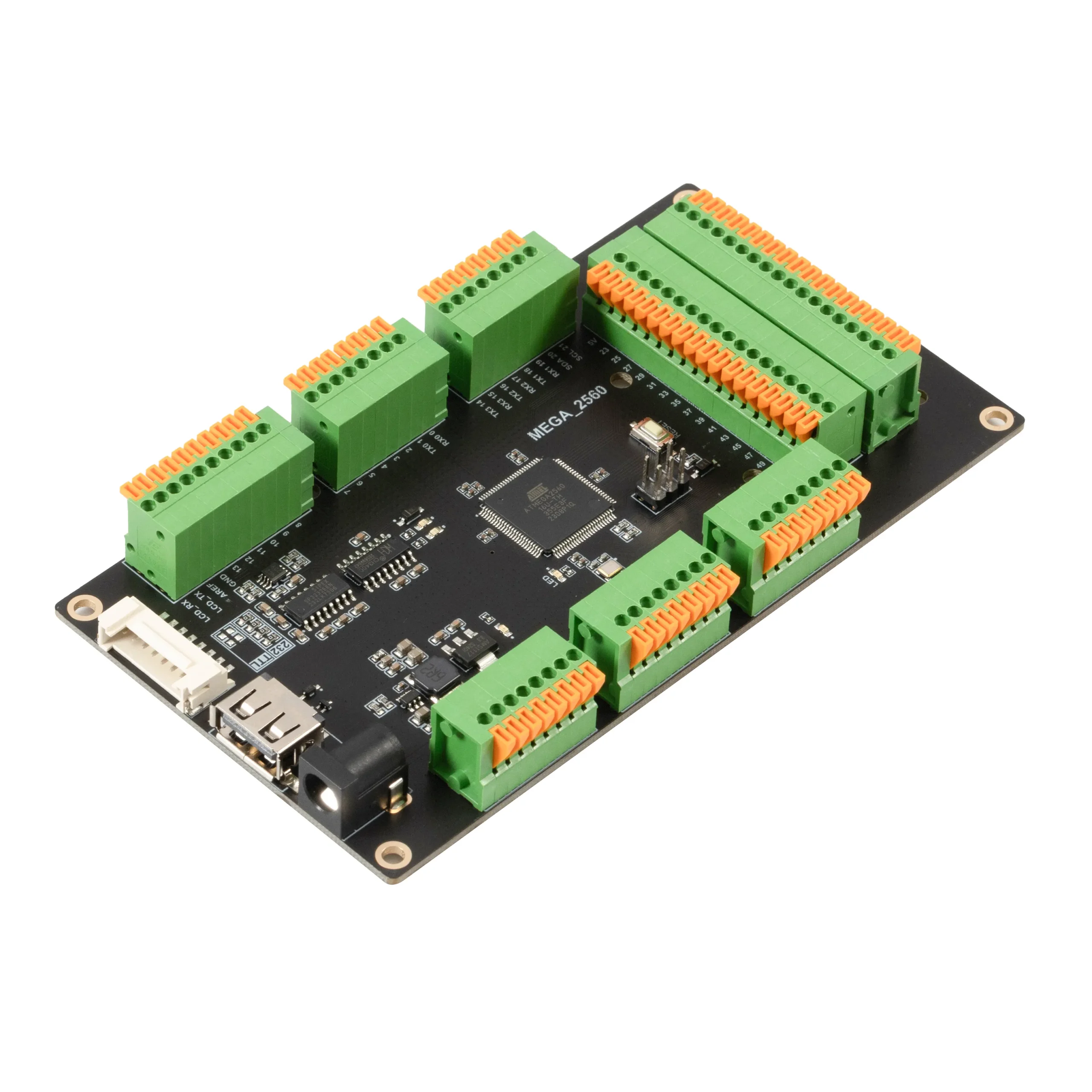

STMEGA2560



Product Overview

Industrial-grade multi-interface controller board, powered by ATMEGA2560-16AU MCU, specifically engineered for display integration, automation control, and versatile communication applications.



Key Applications

• HMI Display System Integration
• Multi-sensor Data Collection & Processing
• Industrial Device Control
• Education and Rapid Prototyping

Core Technical Advantages

High-Performance Platform

• ATMEGA2560-16AU 32-bit Processor
• 16MHz Clock Speed with 16 MIPS Throughput
• 256KB Flash + 8KB SRAM for Application Development

Comprehensive Interface Support



Communication Interfaces

• Quad UART Ports
  • UART0/1/2/3 via Socket Pin Connections
  • Configurable RS232/TTL Level Selection
  • Dedicated 8-pin Serial Port for STONE Display Modules
• USB 2.0: Programming, Debugging and External Device Communication
• I2C: Sensor & Peripheral Expansion via SDA_20 and SDA_21 Side Sockets

Control Interfaces

• Multiple Digital I/O Pins
• LCD_RX and LCD_TX Dedicated Display Connection
• Analog Input Channels for Signal Acquisition

Comprehensive Protection

• Robust Power Regulation Design
• Input Protection Circuitry
• Status Indication LEDs for Easy Diagnostics
• Industrial-grade Component Selection



Development Support



Easy Development

• USB Programming Interface
• Arduino IDE Compatible
• Complete Library Support
• Pre-configured for STONE Display Modules



Product Specifications

Hardware Specifications

• Dimensions: [72] x [134] x [1.6] mm
• Mounting: Standard Mounting Holes

Ordering Information

• Model Number: STONE MEGA2560
• Standard Accessories: USB Cable, Pin Header Set, Quick Start Guide
• Warranty: [Period] Years
• Optional Accessories: Display Modules, Connection Cables

Certifications

– CE Certified
– RoHS Compliant
– FCC Approved
– ISO 9001:2015 Manufacturing

Value Propositions

• Seamless Display Integration
• Multi-interface Versatility
• Compatible with Arduino Ecosystem
• Easy Programming and Development
• Professional Technical Support
