Human-Machine Interface HMI panels have revolutionized the way users interact with machines and devices across various industries. At the core of this interaction lies the touch functionality, which enables intuitive control and operation. Understanding how HMI panel touch works involves delving into its technology, components, and applications.

Introduction to HMI Panel Touch Technology
HMI panel touch technology encompasses a range of methodologies that enable users to input commands through direct physical contact with the interface. This interaction is facilitated by touch-sensitive elements integrated into the panel’s surface. These panels can be found in devices ranging from smartphones and tablets to industrial control systems and automotive dashboards.
Types of Touch Technologies
1. Resistive Touch Screens
Resistive touch screens consist of several layers, typically two flexible sheets coated with a resistive material and separated by a small gap. When pressure is applied to the screen, the layers make contact, causing a change in electrical current that is detected and interpreted as a touch.
2. Capacitive Touch Screens
Capacitive touch screens rely on the electrical properties of the human body to detect touch. They are made of a glass panel coated with a transparent conductor such as indium tin oxide (ITO). When a user touches the screen, it disrupts the screen’s electrostatic field, enabling the location and intensity of the touch to be determined.
3. Surface Acoustic Wave (SAW) Touch Screens
SAW touch screens use ultrasonic waves that pass over the touch panel. When the screen is touched, a portion of the wave is absorbed, creating a response that identifies the touch location. This technology is known for its durability and optical clarity, making it suitable for various environments.

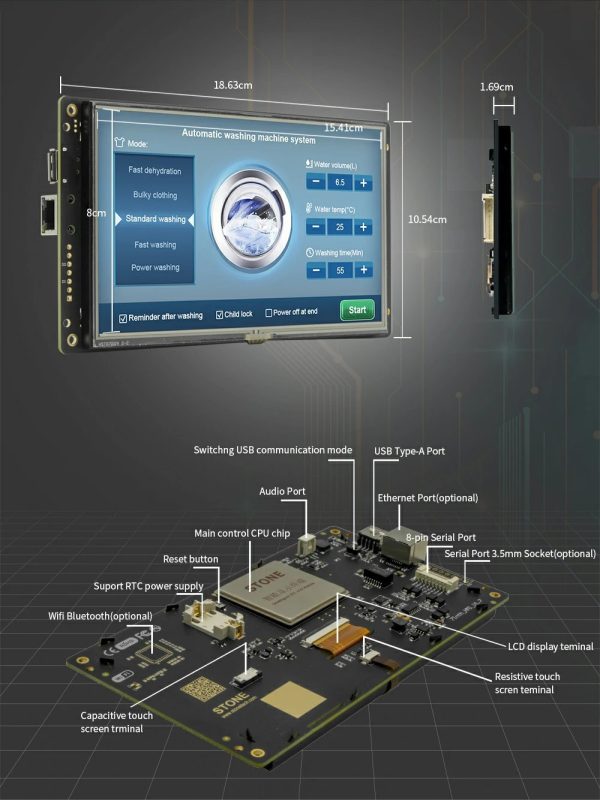

Components of an HMI Touch Panel
1. Touch Sensor
The touch sensor is the fundamental component of an HMI touch panel. It detects and locates touch input through various technologies such as resistive, capacitive, or SAW.
2. Controller
The touch controller processes the signals from the touch sensor into digital data that the device’s processor can interpret. It determines the precise coordinates of the touch and differentiates between gestures like taps, swipes, and pinches.
3. Software Interface
The software interface translates the touch input into commands that control the device or application. This interface includes drivers, APIs, and user interface elements designed to facilitate user interaction.
Working Principles of HMI Panel Touch
1. Detection of Touch Input
When a user touches the HMI panel, the touch sensor detects the physical contact and sends corresponding signals to the touch controller.
2. Signal Processing
The touch controller processes these signals, identifying the location and characteristics of the touch. It distinguishes between intentional touches and noise or unintended input.
3. Communication with Device
After processing, the touch controller communicates the digital data to the device’s main processor or controller, which executes the appropriate actions based on the touch input received.
Applications of HMI Panel Touch
1. Consumer Electronics
In smartphones, tablets, and laptops, touch screens enable users to navigate interfaces, input text, and control applications with ease.
2. Industrial Automation
HMI panels in industrial settings allow operators to monitor and control machinery, adjust settings, and respond to alerts or alarms efficiently.
3. Automotive Industry
Touch screens in modern vehicles provide drivers and passengers with access to entertainment systems, navigation tools, climate controls, and vehicle diagnostics.
Advantages of HMI Panel Touch Technology
1. Intuitive User Interface
Touch screens offer a natural and intuitive way for users to interact with devices, reducing the learning curve associated with complex interfaces.
2. Enhanced Durability
Certain touch screen technologies, such as SAW and capacitive screens, are known for their durability, resistance to environmental factors like dust and moisture, and long lifespan.
3. Versatility
HMI panels with touch technology can be customized to suit specific applications, offering flexibility in design and functionality.
Challenges and Considerations
1. Sensitivity to Environmental Factors
Capacitive touch screens may be affected by water or gloves, requiring specialized designs for certain applications.
2. Cost Considerations
Advanced touch technologies can add to the overall cost of devices or systems, influencing purchasing decisions in commercial and industrial sectors.
3. Maintenance Requirements
Regular cleaning and maintenance are necessary to ensure optimal performance and longevity of touch screen interfaces, especially in high-use environments.
Future Trends in HMI Panel Touch
1. Integration with AI and Machine Learning
Advancements in artificial intelligence and machine learning are enhancing the capabilities of HMI panels, enabling predictive maintenance, adaptive interfaces, and personalized user experiences.
2. Augmented Reality (AR) and Virtual Reality (VR) Integration
AR and VR technologies are expanding the possibilities for HMI panel touch applications, creating immersive and interactive environments in industries such as gaming, training, and remote operations.
3. Continued Miniaturization and Integration
As devices become smaller and more compact, touch technology is evolving to accommodate miniaturization without sacrificing performance or usability.
Conclusion
In conclusion, HMI panel touch technology plays a crucial role in modern user interfaces across various sectors. By understanding the underlying principles, components, and applications of HMI touch panels, manufacturers and developers can continue to innovate and improve user experiences. As technology advances and consumer expectations evolve, the future of HMI panel touch promises further integration, enhanced functionality, and new opportunities for interaction and control.
